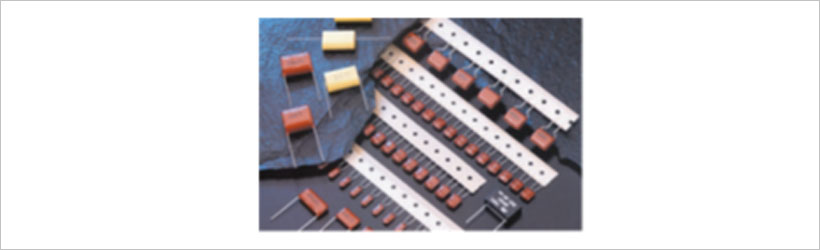

Top Coating , Dipping Epoxy RESIN
上塗り浸漬型エポキシ樹脂 上涂装浸渍型环氧树脂
Dipping epoxy resin, EPOXY RESIN-10 series is composed of ETR-10(epoxy resin), ETH-10(hardener),
ETD-10(diluent) for capacitors which our company supplies.
弊社で生産してるコンデンサ用浸漬型エポキシ樹脂-10系列にはETR-10(樹脂),
ETH-10(硬化剤),ETD-10(希釈剤)があります。
我司提供的电容器用浸渍型环氧树脂-10系列包括ETR-10(树脂),ETH-10(硬化剂），ETD-10(稀释剂)。
Main properties are :
- Evenly spread and permeable
- Convenient workability in various terms
- Long pot life
- RoHs, SVHC, Halogen free UL approved
- Luster is Excellent and Good appearance.
主な特徴
- 拡散、浸透均一
- 便利な作業
- 長い可使用時間
- リードフリー
- 優れた外観と光沢性
主要特征
- 分散，渗透均匀
- 作业方便
- 可使时间长
- 无铅
- 光泽，外观佳
Specification 規格
| PRODUCT |
ETR-10/ETD-10/ETH-10 |
ETR-10CL/ETD-10/ETH-10 |
ETRF-10/ETD-10/ETH-10 |
| Color |
All color |
Transparency |
All color |
| Viscosity(25℃) |
25,000~45,000 |
10,000~25,000 |
20,000~41,000 |
Mixing Ratio
(Resin/Diluent/Hardener) |
100/30/30 |
100/60/40 |
100/30/30 |
| Mixture Viscosity |
2,500~6,000 |
2,500~6,000 |
2,500~6,000 |
| T.I. Index |
5.0 ~ 8.0 |
5.0 ~ 8.0 |
5.0 ~ 8.0 |
| Cure Schedule |
100℃/2hr |
100℃/2hr |
100℃/2hr |
| Pot Life(25℃/hrs) |
12 |
12 |
12 |
| Applications |
Inductive or metal capacitor |
Mylar capacitor |
Flame retardant type |
| Package |
10 or 20kg / Can |
| Storage |
6 months for Hardener & Diluent and 4 months for Resin at room temperature |
Impregnating EPOXY RESIN
下塗り浸漬型エポキシ樹脂 涂底浸渍型环氧树脂
Impregnating epoxy resin, EPOXY RESIN-30 series is composed of ETR-30(epoxy resin),
ETH-30(hardener) for capacitors which our company supplies.
弊社が提供してるコンデンサ用浸漬型エポキシ樹脂-30系列はETR-30(エポキシ樹脂）とETH-30（硬化剤）
で構成してます。
我司提供的电容器用浸渍型环氧树脂，EPOXY RESIN-30 系列由ETR-30(环氧树脂），ETH-30（固化剂）构成。
Main properties are :
- Excellent appearance with strong coherence
- Good electric property and high performance
- Applicable use for varied mold sphere
- Widely workable in poor condition
- RoHs, SVHC, Halogen free UL approved
主な特徴
- 優れた外観と高粘着力
- 良好な電気性能
- 様々な模型に適用
- 劣悪な条件でも作業可能
主要特征
- 外观出色及具有高粘结力
- 良好的电气性能
- 适用于各种模具
- 不太理想的条件下也可作业
Specification 規格
| PRODUCT |
ETR-30 / ETH-30 |
ETR-300 / ETH-300 |
| Color |
Clear |
Clear |
| Viscosity(25℃) |
1,500~5,000 |
1,500~5,000 |
Mixing Ratio
(Resin//Hardener) |
100 / 80 |
100 / 80 |
| Mixture Viscosity |
100~2,500 |
100~2,500 |
| Cure Schedule |
105℃/2hr |
105℃/2hr |
| Pot Life(25℃/hrs) |
36 |
36 |
| Applications |
Pet film, Under coat, Transformer |
PP/PET Combination type |
| Package |
20kg / Can |
| Storage |
12 months when kept at a temperature of below 15℃ |

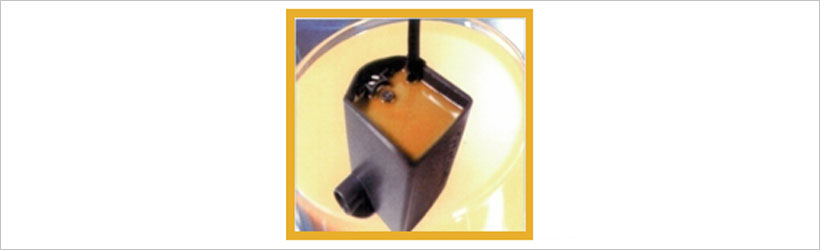

Potting & Molding EPOXY RESIN
ポッティング 成形型エポキシ樹脂 灌封成型环氧树脂
Potting epoxy resins, EPOXY RESIN-50 series is composed of ETR-50B(epoxy resin), ETH-50B(hardener)
弊社のエポキシの-50系列はETR-50（エポキシ樹脂）とETH-50(硬化剤)で構成しております。
灌封成型环氧树脂-EpoxyResin-50系列由ETR-50(环氧树脂），ETH-50(固化剂)构成
Main properties are :
- Convenient workability
- Good coherence & high permeability
- Comparative merits of electric properties
- RoHs, SVHC, Halogen free UL approved
- UL 94V0 Certified Products
特徴
- 便利な操作
- 高粘着性と浸透性
- 競争力のある電気性能
-
- UL 94V0 標準認証製品
主要特征
- 操作方便
- 高粘结性和高渗透性
- 有竞争力的电气性能
- UL 94V0 标准认证产品
Specification 規格
| PRODUCT |
ETR-50B / ETH-50B
(Amin type) |
ETR-50B / ETH-50B
(Acid Anhydride type) |
ETR-50B / ETH-50B(Amin type) |
| Color |
All color |
All color |
All color |
| Viscosity(25℃) |
4,000~20,000 |
4,000~20,000 |
3,000~15,000 |
Mixing Ratio
(Resin/Diluent/Hardener) |
100 / 20 |
100 / 40 |
100 / 20 |
| Mixture Viscosity |
500~5,000 |
500~5,000 |
500~5,000 |
| Cure Schedule |
50℃ / 4hr |
80℃ / 4hr |
50℃ / 4hr |
| Pot Life(25℃/hrs) |
2 |
24 |
2 |
| Applications |
Filler type
Axial lead type,
A/C capacitors |
High Voltage parts,
A/C capacitors |
Non filler type，Normal A/C type, Mini box type |
| Package |
- ETR-50B : 10 or 20kg / CAN , ETH-50B : 15KG / CAN |
| Package |
- 12 months when kept at a temperature of below 15℃ |
